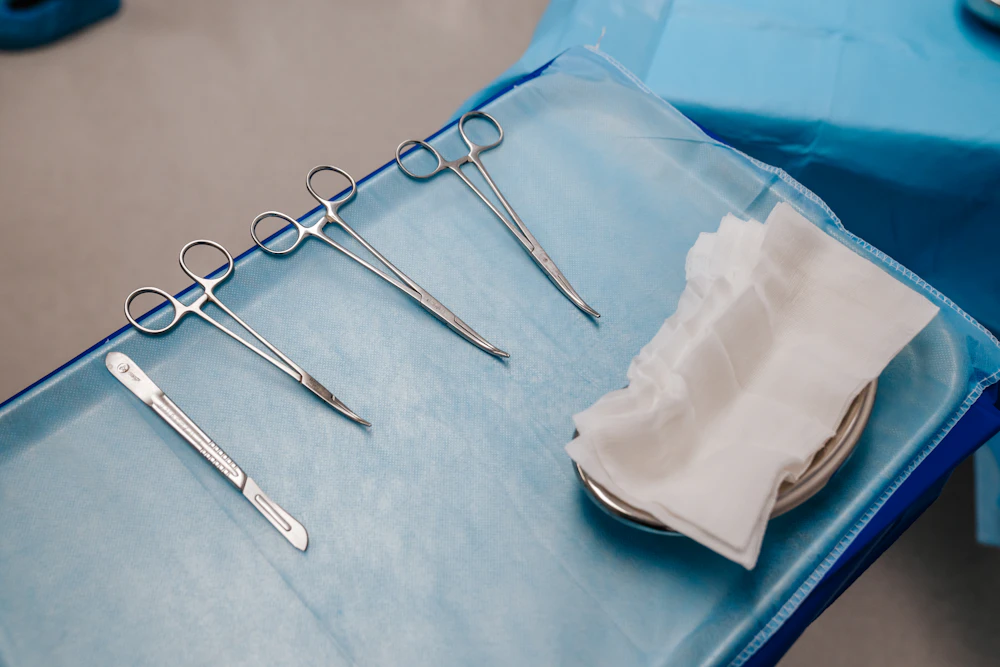

Surgical instrument sets
Reusable stainless instrument trays matched to each implant system for reliable intra-operative workflow.
Home / Products
Product Catalog
Orthopedic systems for trauma, spine and joint reconstruction.
Every device is manufactured to anatomical specification, supplied with sizing charts and matched instrument sets, and documented to full batch traceability.
CAT-01 · HIP
Clinical Reference
Hip Prosthesis Systems
Request hip system quote
Modular & cemented hip solutions
Anatomical stem designs with advanced bearing surfaces, offered in cemented and cementless configurations to match surgeon technique and patient anatomy.
| Parameter | Specification |
|---|---|
| Stem material | Titanium Grade 5 (Ti-6Al-4V ELI) |
| Head material | Cobalt-Chromium / Ceramic options |
| Head diameter | 28 mm · 32 mm · 36 mm |
| Fixation | Cemented & cementless (porous coated) |
| Tolerance | ±0.01 mm on taper junctions |
CAT-02 · KNEE
CoCr Alloy Stock
Knee Implant Systems
Request knee system quote
Fixed & mobile bearing knees
Engineered for maximum range of motion and long-term survivorship, with cruciate-retaining and posterior-stabilised options.
| Parameter | Specification |
|---|---|
| Femoral component | Cobalt-Chromium alloy |
| Tibial insert | UHMWPE (highly cross-linked) |
| Design | CR & PS · fixed / mobile bearing |
| Sizes | Full left/right size matrix |
| Instrumentation | Matched cutting-guide instrument set |
CAT-03 · SPINE
Anatomical Reference
Spinal Implant Systems
Request spinal system quote
Pedicle screws, cages & fusion devices
Comprehensive pedicle screw systems, cervical cages and interbody fusion devices manufactured from PEEK and titanium.
| Parameter | Specification |
|---|---|
| Screw system | Poly-axial & mono-axial titanium |
| Cage material | PEEK-OPTIMA with titanium markers |
| Rod diameter | 5.5 mm titanium |
| Applications | Cervical · thoracic · lumbar |
| Surface | Radiolucent with imaging markers |
CAT-04 · TRAUMA
Instrument Tray
Fracture Fixation Devices
Request trauma system quote
Plates, nails & cannulated screws
Locking compression plates (LCP), intramedullary nails and cannulated screws for complex trauma management.
| Parameter | Specification |
|---|---|
| Plates | Locking compression plates (LCP) |
| Nails | Intramedullary — femoral / tibial / humeral |
| Screws | Cannulated & cortical, self-tapping |
| Material | 316L Stainless Steel & Titanium |
| Anatomy | Anatomically pre-contoured profiles |
Compare Materials
Four implant-grade materials, one production line
Every material we machine is qualified to its governing ASTM standard. Tap a material to compare its properties and typical application.
StandardASTM F136
AlloyTi-6Al-4V ELI (Grade 23)
Key propertyHigh strength-to-weight, excellent osseointegration
Typical useHip stems, spinal screws & rods, trauma plates
ImagingMRI-compatible, low artefact
StandardASTM F1537
AlloyCobalt-28Chromium-6Molybdenum
Key propertyHigh wear resistance, excellent fatigue strength
Typical useKnee femoral components, hip bearing heads
ImagingMRI-conditional; higher radiographic density
StandardASTM F648
MaterialUltra-High-Molecular-Weight Polyethylene
Key propertyLow friction articulating surface, wear resistant
Typical useKnee tibial inserts, acetabular liners
ImagingRadiolucent
StandardASTM F2026
MaterialPolyetheretherketone (PEEK-OPTIMA)
Key propertyBone-like modulus of elasticity, radiolucent
Typical useInterbody spinal cages, fusion devices
ImagingRadiolucent with titanium markers for visibility
Also Available
Surgical instruments & rehabilitation gear
External fixators
Modular external fixation frames for temporary and definitive stabilisation of complex fractures.
Rehabilitation supports
Post-operative braces and mobility aids to support recovery across the continuum of care.
Bulk Procurement
Need volume pricing or a custom configuration?
Share your requirements and our sales engineering team will return sizing options and a formal quotation.
